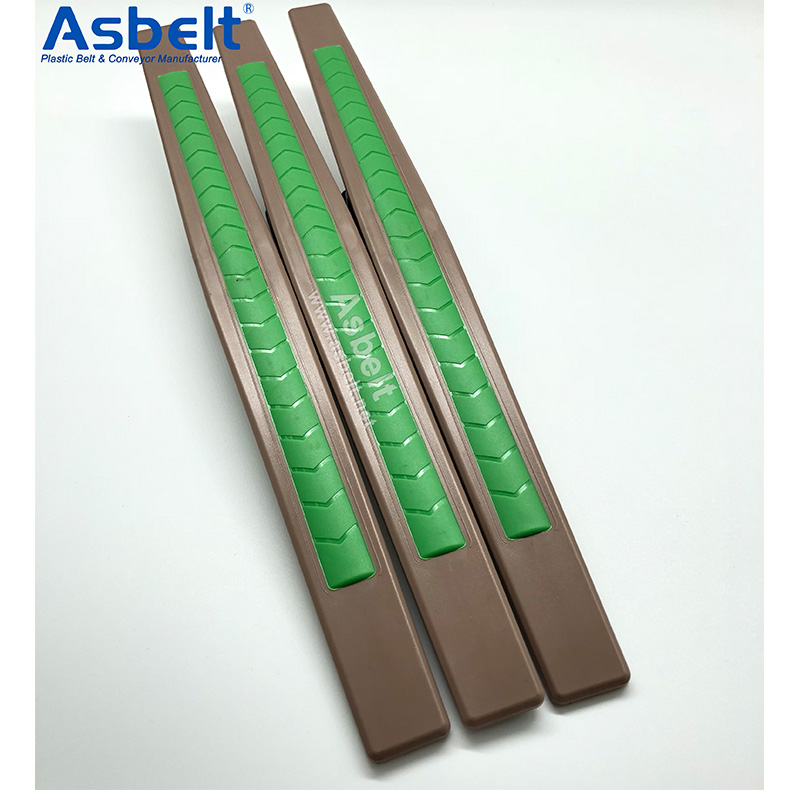

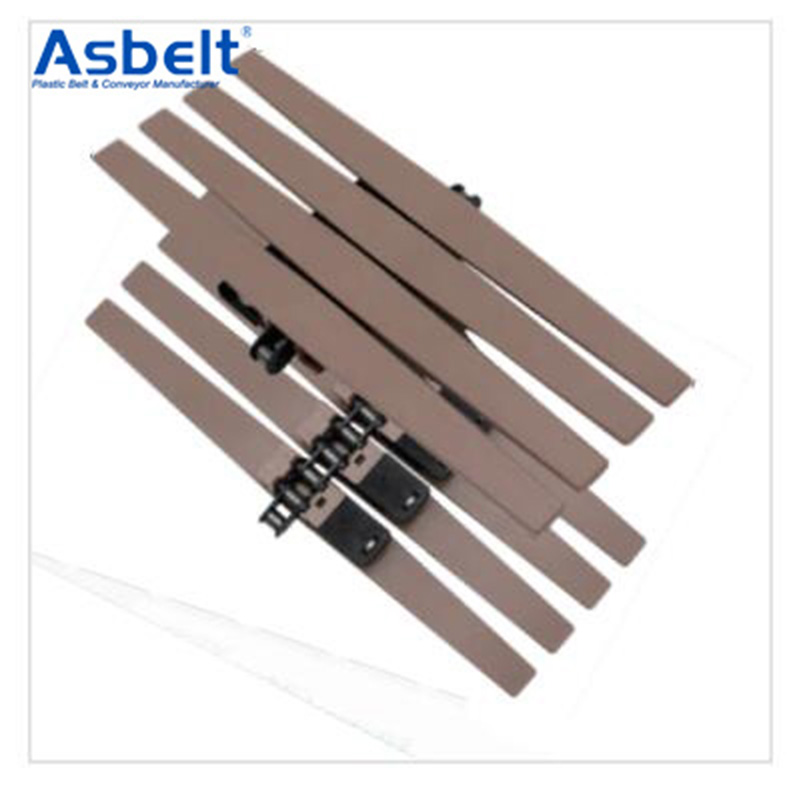

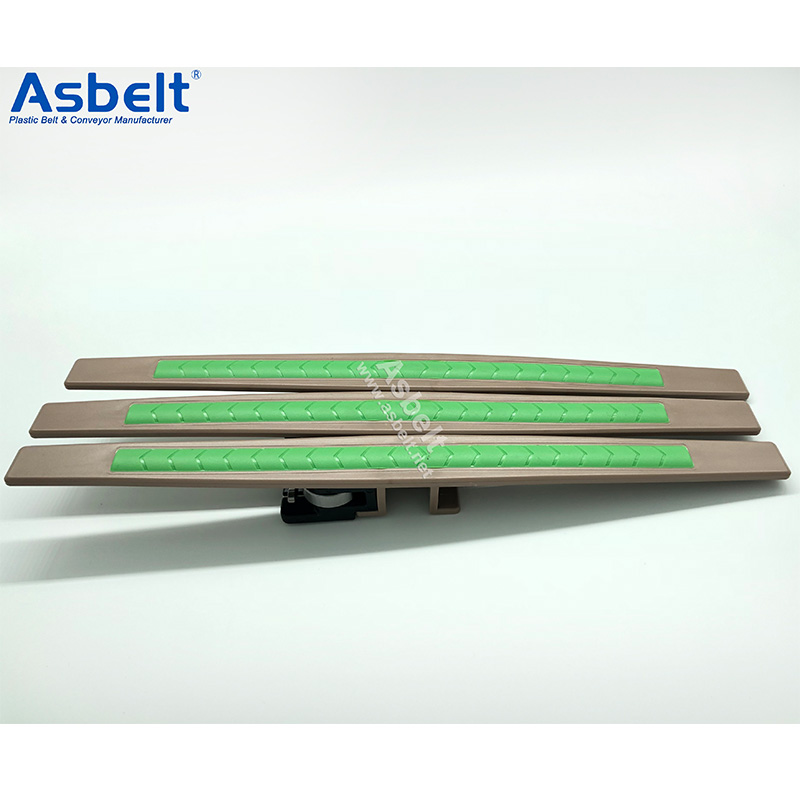

Ast1873TG-K1600 Spiral Belt
Pitch=1.5"(38.1 mm)
PRODUCT DETAILS
Ast1873TG-K1600 Spiral Belt
Pitch=1.5"(38.1 mm)
Belt Material: POM
Minimum Reverse Radius: RD150 mm
Working Loading (21℃): 4500 N (carbon steel base chain), 3400N (stainless steel base chain)
Packaging& Delivery
1. Packaging Details: Carton case or plywood case
2. Delivery Details
FOB any port in China
CIF any port which customer request
Express like FedEx, DHL, EMS TNT is available
3. Delivery Time
For regular model: 7-10 days
For customized model: 10-30 days
After-sales Service: Engineers available to service machinery overseas
FAQ
Q: Are you a trading company or manufacturer?
A: Asbelt(QIANSU) is the manufacturer of plastic modular belt
Q: Do you provide samples?
A: Sample order available, even with low MOQ.
Q: What is the terms of payment?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
